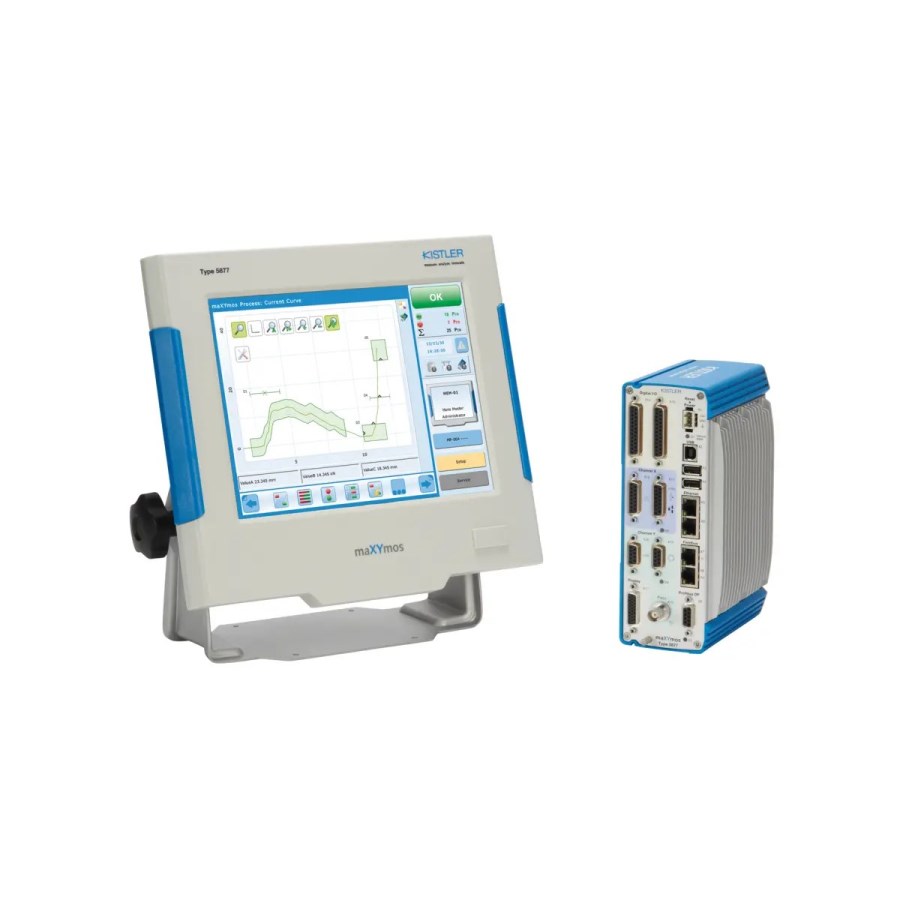

The maXYmos TL (Top Level) captures, analyzes and evaluates
XY curves of two measurands that have to stand in a precisely
defined relationship to each other. Such curves arise in applications such as
• Press fitting of bearings or valve seat rings
• Riveting and flanging of casing parts
• Turning and swiveling of joints
• Turning of key switches
• Movement of drawer slides
• Compression and extension of shock absorbers
• Pressing of snap-in elements
The main features of each MEM:
• Curve capture according to Y=f(X), Y=f(X,t), Y=f(t), X=f(t)
• Curve evaluation with NO-PASS, LINE-X, LINE-Y, UNI-BOX, ENVELOPE, GET-REF, CALC, TUNNELBOX-X, TUNNELBOX-Y, SPEED, AVERAGE, TIME, DISPLACEMENT RANGE, FORCE RANGE, PASS-THROUGH BOX
• Up to 10 evaluation objects (EOs) per curve
• Dynamic referencing of evaluation objects in X and Y directions
• 108 measurement programs and 20 master programs
• Measurement curve with up to 8,000 XY value pairs
• Access via web-browser using encryption
• EtherNet TCP/IP for measurement data, remote maintenance and channel cascading
• Choice of bus types available via menu: PROFIBUS DP, EtherNet/IP, PROFINET, EtherCAT
• Dig-IO (24 V) for control and results
• 2 switching signals on X or Y threshold
• 2+1 USB for USB stick and notebook

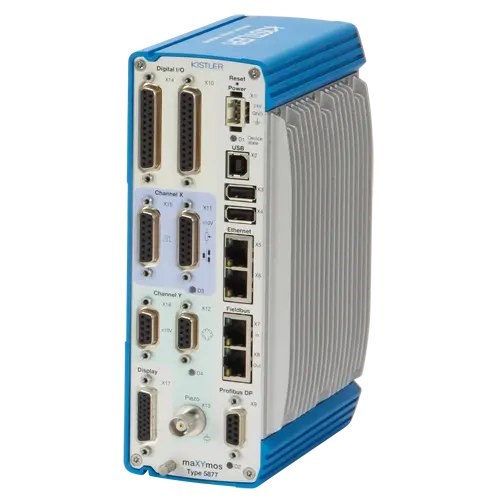

• Channel X: Pot, ±10 V, LVDT, incremental, SSI
• Channel Y: Strain gauge, ±10 V, ±10 V (2 measurement ranges), or piezoelectric sensors
• Multiple data export formats, e.g. Q-DAS, QDA9, IPM 5.0, XML, CSV, PDF

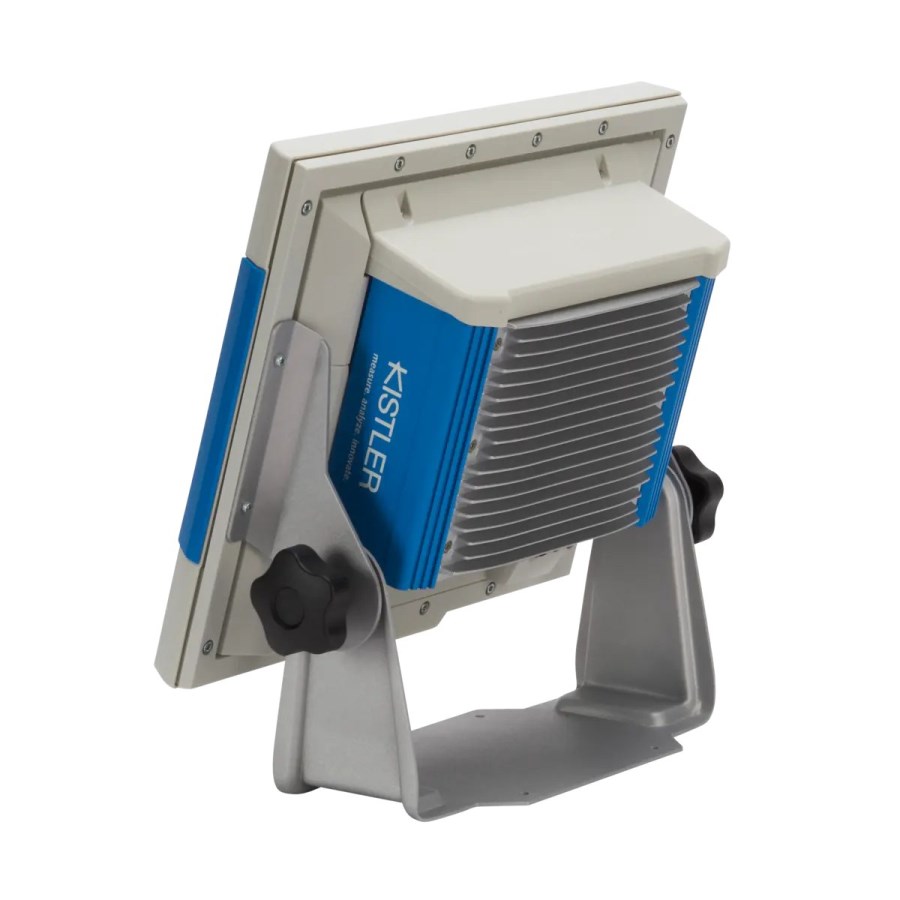

• Desktop, wall or front panel mounting; can be repositioned in a few easy steps
• Informative NOK cause diagnosis, process value trend patterns, etc. incl. warnings and alarms
• Process value table with free choice of contents
• Selected process values for the curve graph
• Acces protection with various levels of access

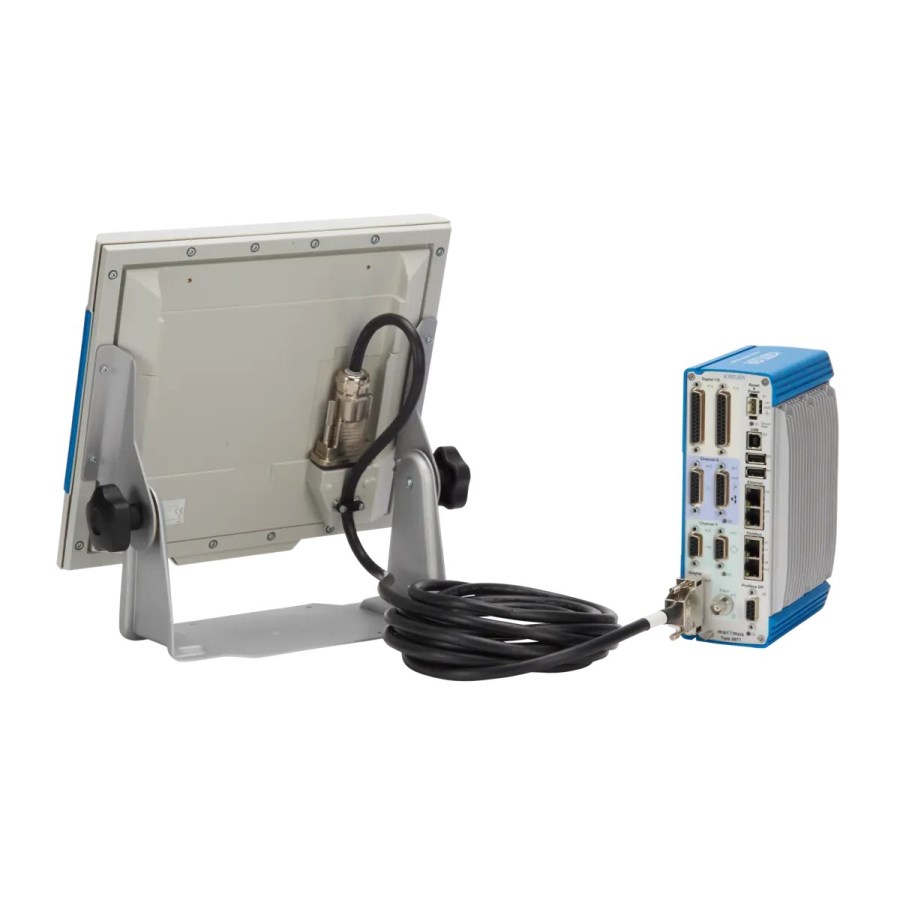

• Display module (DIM) with 10.4" color touch screen and front-mounted USB slot
