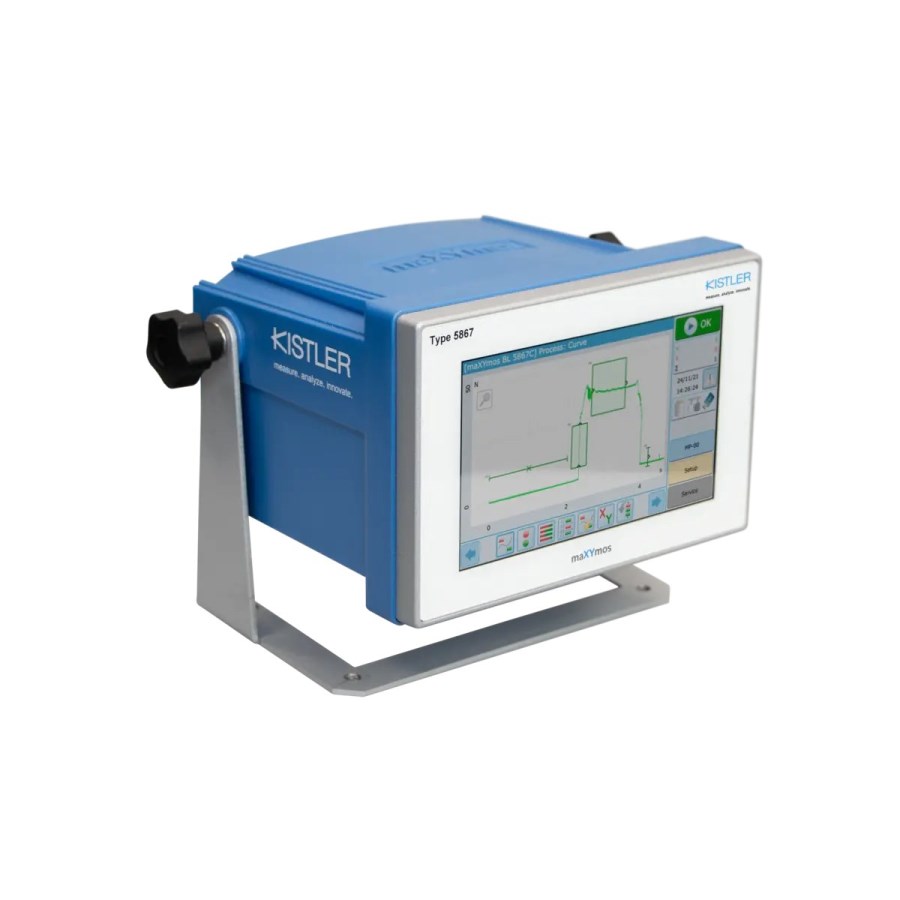

Bộ giám sát maXYmos BL, Type 5867C

maXYmos BL monitors and evaluates XY curves in which two measured variables must be in a certain relationship to each other.
The quality of an individual production step, an assembly or the entire product can be determined based on the shape of such measurement curves. An early decision on good or bad parts not only means savings in time and costs for downstream processes, but also prevents customer errors, including the resulting damage, service cases and costs for analyses.
Application examples
• Pressing in ball bearings
• Rotating and swivelling seat backrests
• Riveting and caulking of housing parts
• Tactile operations on rotary switches etc
Standard scope*
• Measurement function Y(X), Y(t), Y(X,t) or X(t)
• Evaluation via UNI-BOX, LINE-X, LINE-Y, ENVELOPE, NO-PASS
• 4 evaluation elements per curve
• Up to 8,000 XY value pairs per curve
• Short evaluation time, up to 10 parts/second
• 16 measurement programs
• Ethernet TCP/IP for web UI and data transfer
• EtherNet/IP, EtherCAT, PROFINET for process values and control*
• Dig. IO (24 V) for control and results
• 2 real-time switching signals for X and Y threshold*

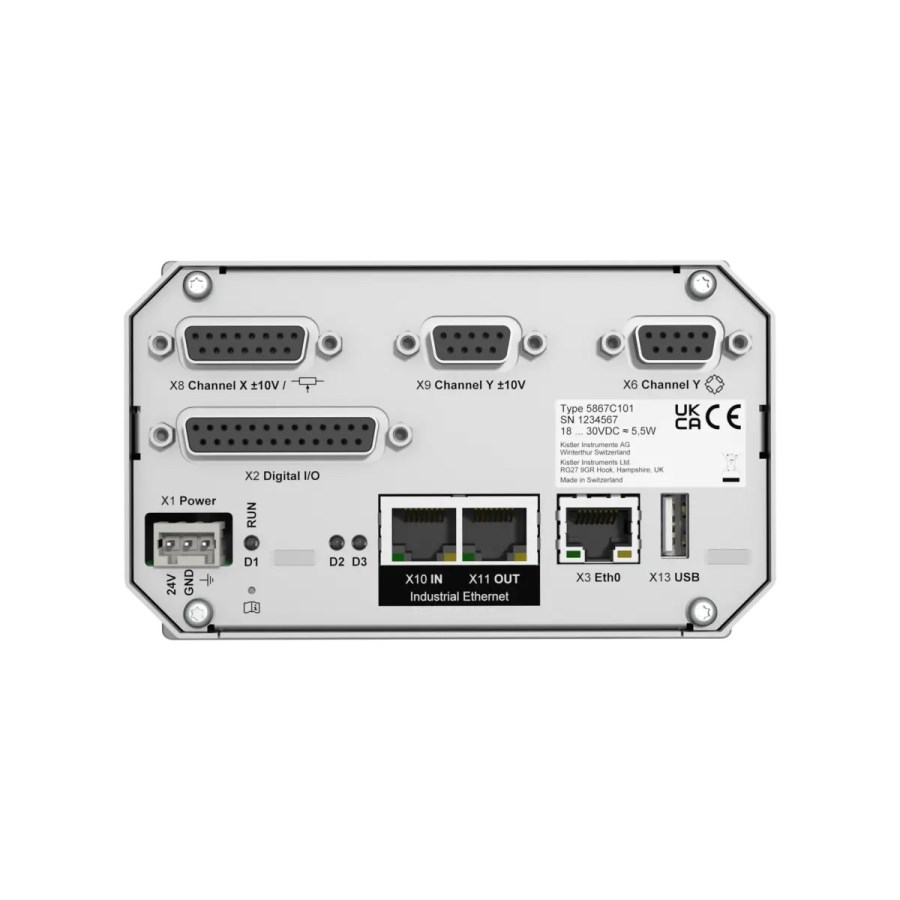

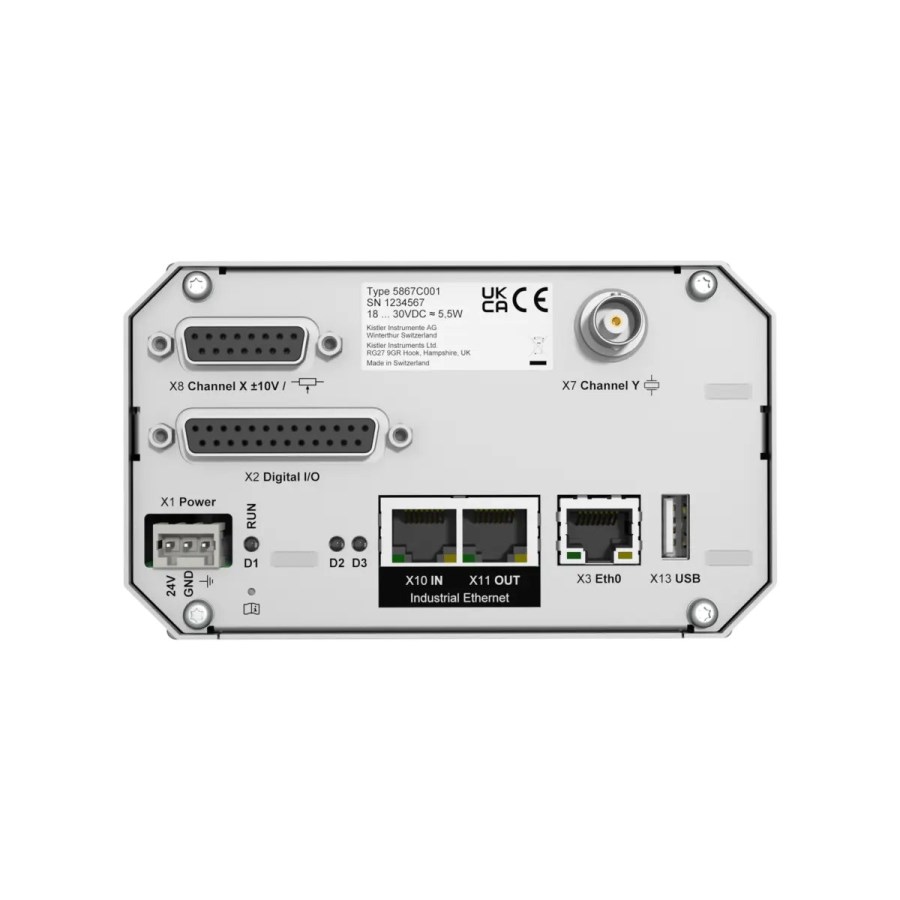

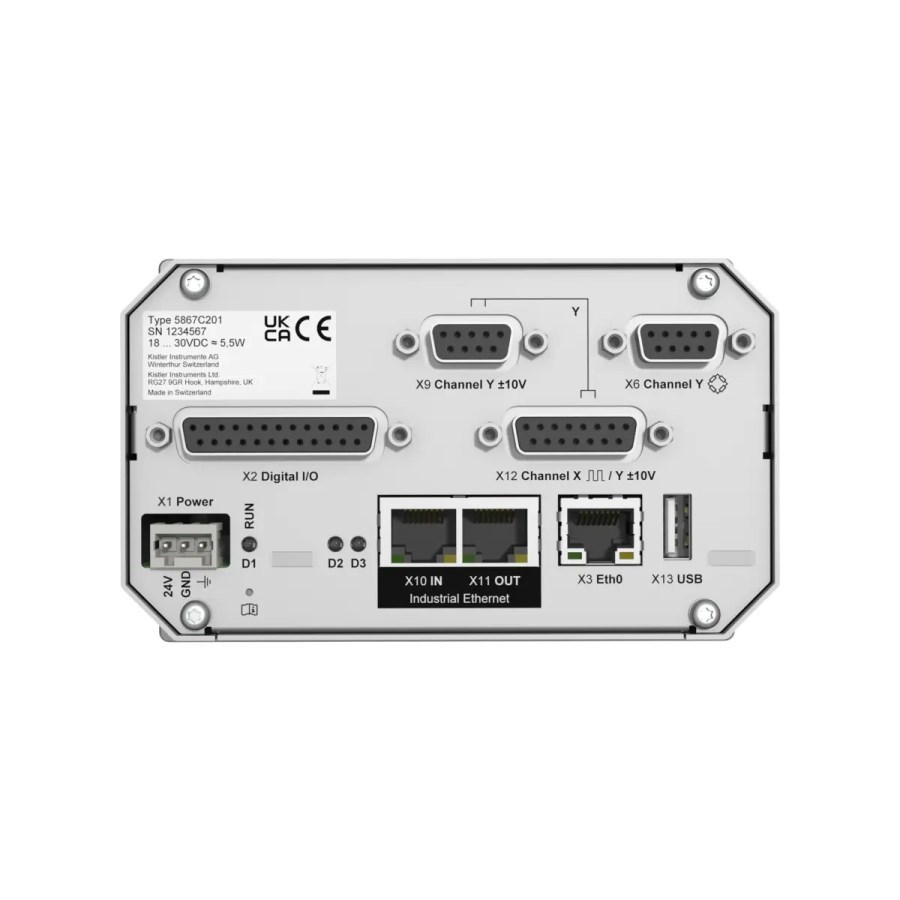

• Sensor X: ±10 V, potentiometer, or incremental*
• Sensor Y: Piezo or strain gauge and ±10 V*

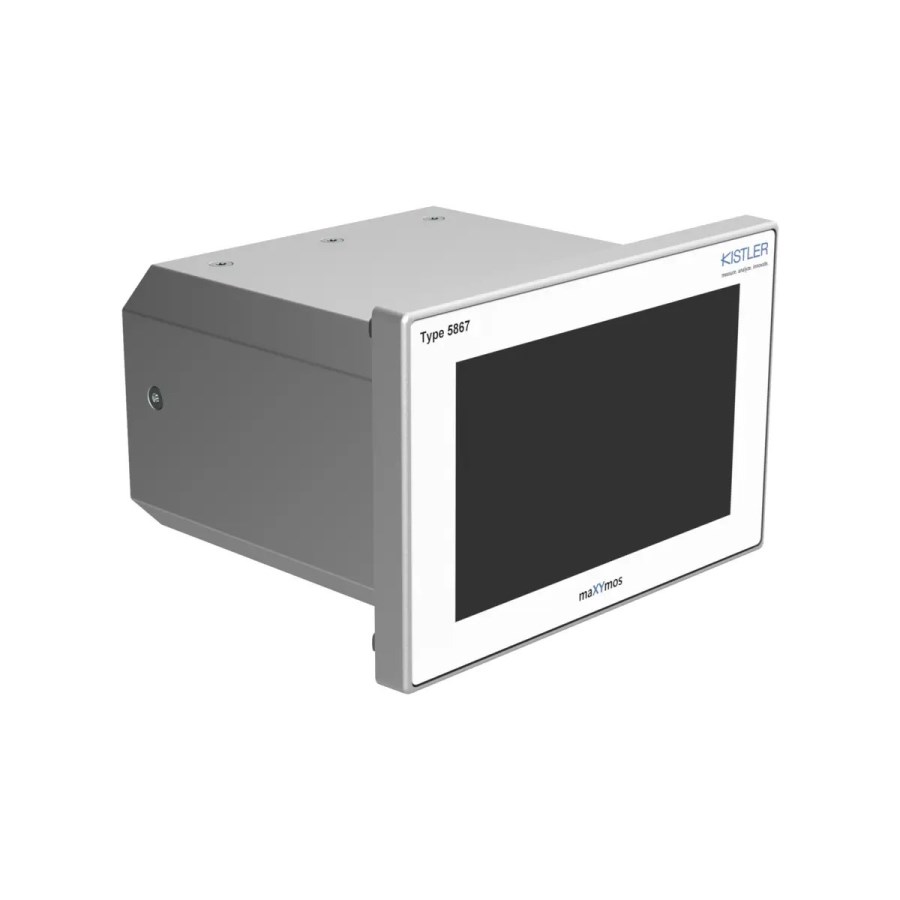

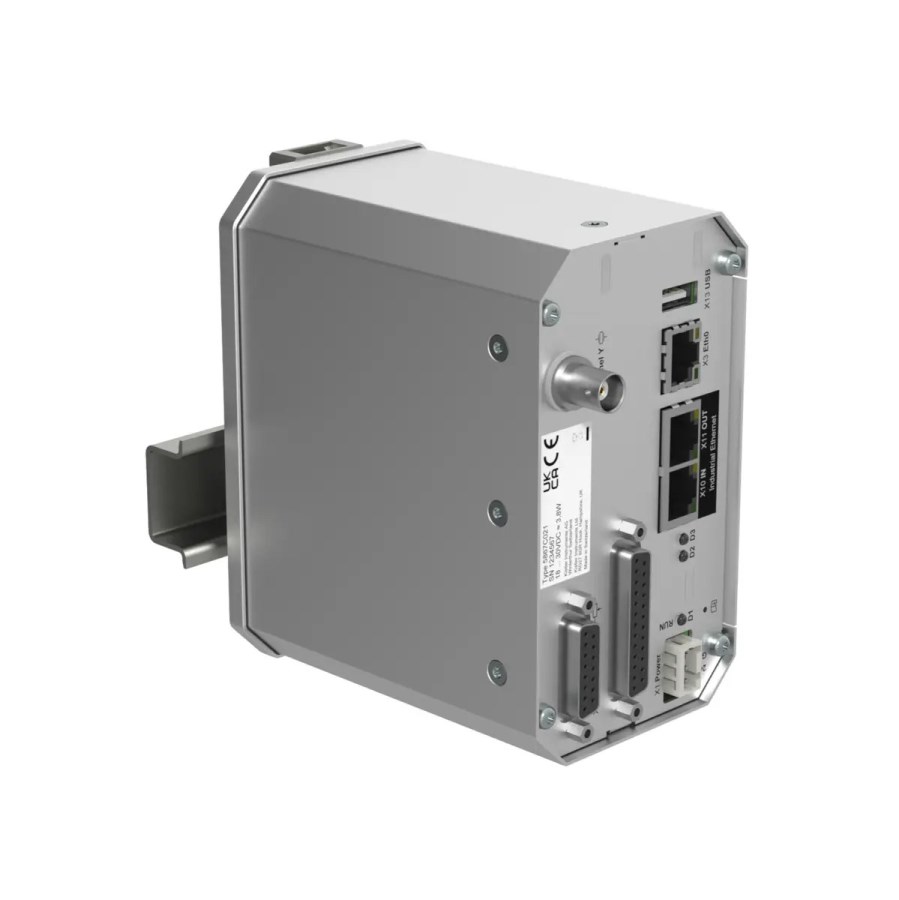

• Front panel, table or wall mounting
• Info pages on the diagnosis of the cause of NIO
• Internal part ident generator selectable
• Warning and alarm messages
• Access protection for different user groups
• 5" colour touchscreen
