The cavity pressure is transmitted by a measuring or ejector pin to the convex force-sensisitive face of the sensor. The quartz element yields an electric charge proportional to the force, hence proportional to the pressure.
The large measuring range of the sensor allows to use pins of any usual diameter (up to 14 mm) without danger of overload.

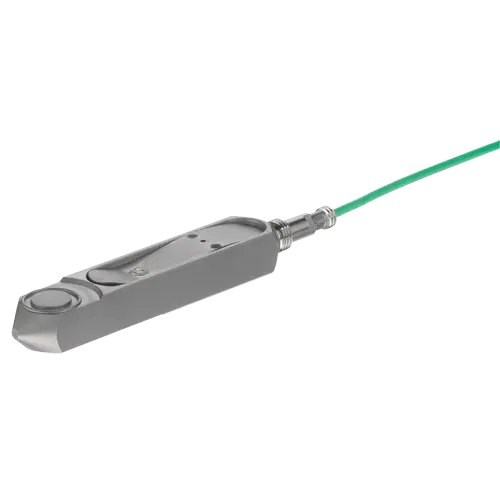

Quartz Measuring Tongue Type 9221 for measuring cavity pressure in injection molding of plastics and die casting of metals.
The pressure is measured indirectly via a measuring or an ejector pin. The sensor can be used with several tools by simply changing it.
Force range 0 ... 10 kN
Easy repositioning in different molds
Exchangeable coaxial cable
Corrosion-resistant
