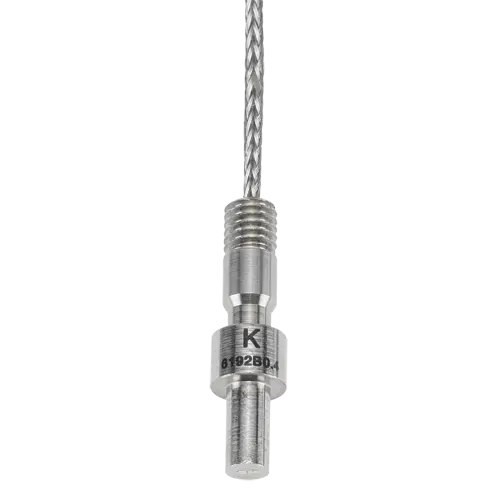

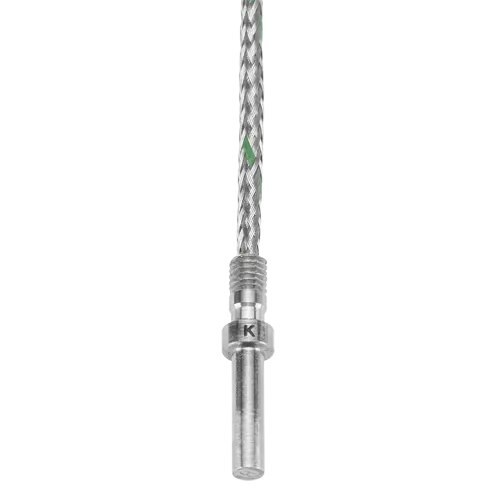

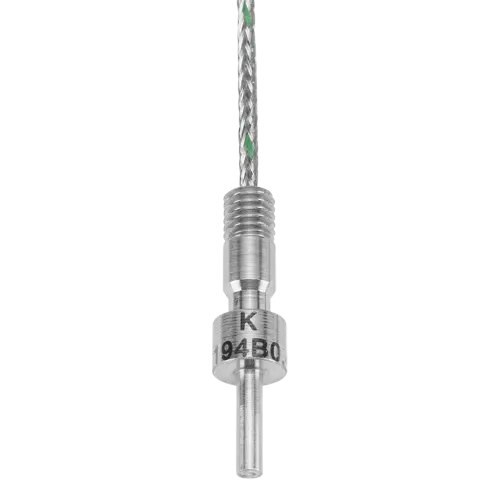

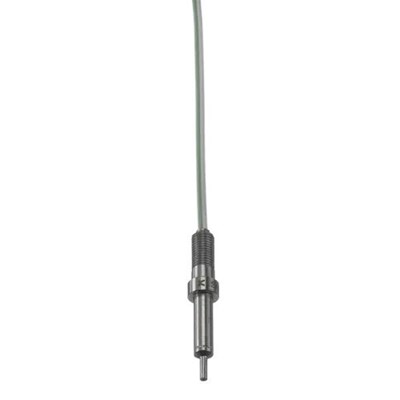

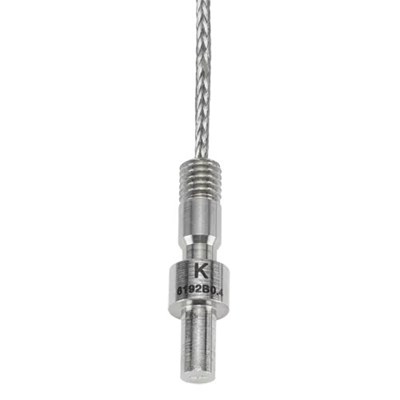

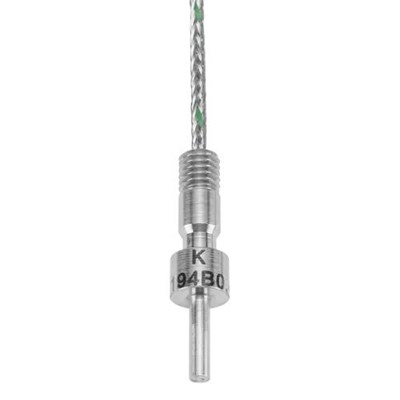

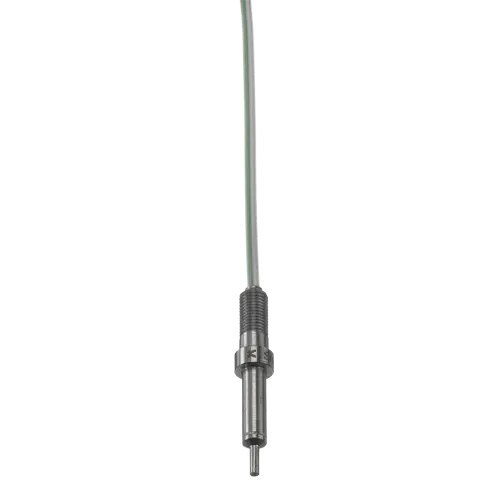

Temperature sensor Types 6192B…, 6193B…, 6194B… and 6195B… are compatible for mounting purposes with the standard mold cavity pressure sensors with 4 mm, 2,5 mm and 1 mm front diameters.
The rugged high-temperature cable is integrated in the sensor and can be used in temperatures up to 450 °C.
The measuring principle is based on Type K thermocouples. Two thermocouple leads are fed separately to the front of the sensor, where they are welded to a thermocouple.
On the sensor Type 6192BF... and 6193BF... the sensor front can be machined to a depth of 0,5 mm. On all other sensor types and variants the front must not be machined in any way.
