The maXYmos BL monitors and evaluates XY curves of two measurands that have to stand in a certain relation to each other. Such curves arise in applications such as

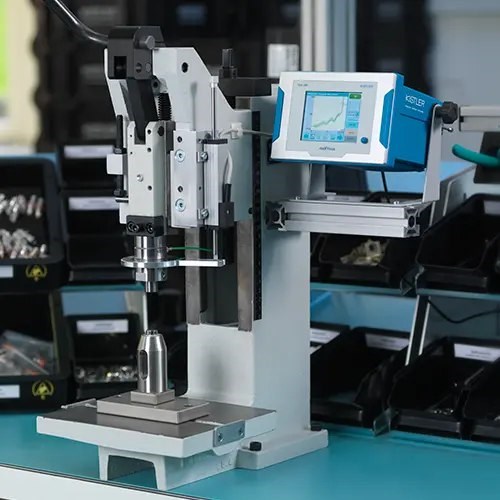

Press fitting ball bearings
Pivoting and adjusting rake of backrests
Riveting and calking casing parts
Tactile manipulation of rotary switches, etc.
Feature:
Measurement function Y(X), Y(t), Y(X,t) oder X(t)
Evaluation objects: UNI-BOX, LINE-X, LINE-Y, ENVELOPE, NO-PASS
4 evaluation objects per curve
16 measurement programs for 16 different types of parts
Up to 8 000 pairs of XY-values per curve
Ethernet TCP/IP for measurement data and remote maintenance
PROFIBUS DP, EtherNet/IP, EtherCAT, PROFINET or CCLink for process values and control*
Dig. IO (24 V) for control and results
2 switching signals in real time for X- and Y-threshold*
USB for notebook (PC program: maXYmos PC)
Sensor for channel X: potentiometer and ±10 V
Sensor for channel Y: piezo or strain gage and ±10 V

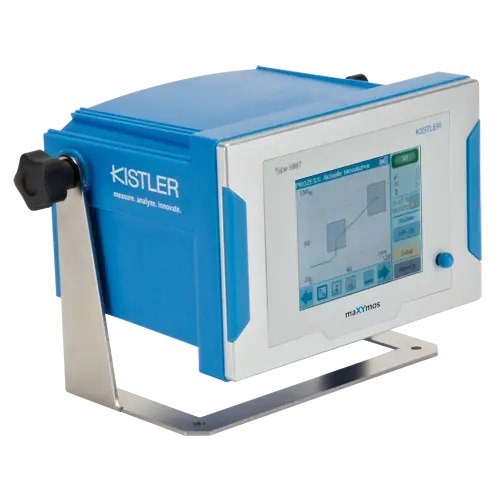

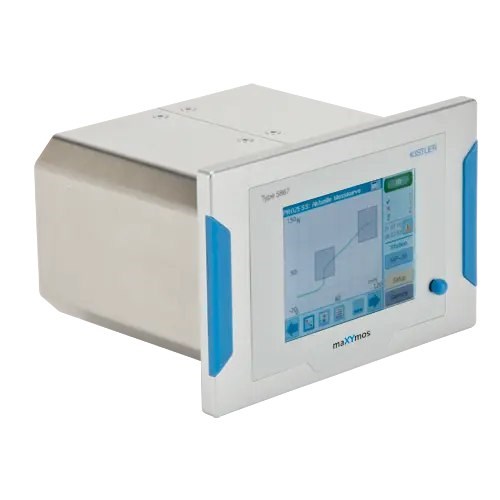

Front panel, desktop or wall-mounting
Information pages for NOK cause diagnosis
Internal SN generator with selectable format
Freely allocatable warning messages and alarms
Access protection for different user groups
3.5" color touch screen display
24 VDC power supply
